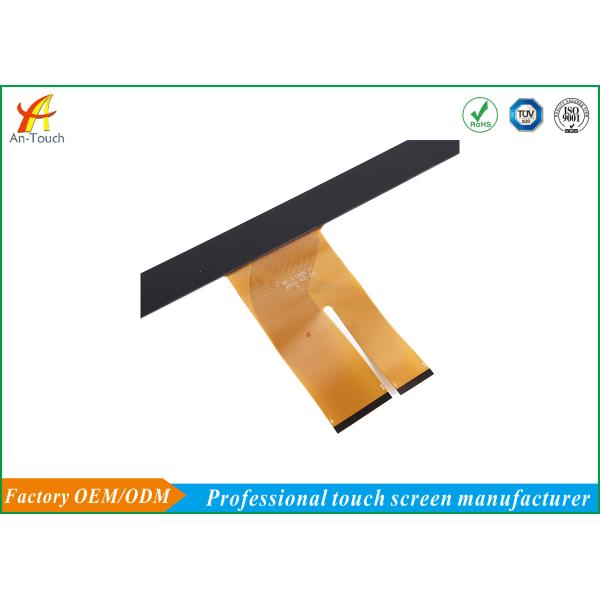

Long Life Capacitive Touchscreen Display , LCD Capacitive Touch Screen Panel
Capacitive Touchscreen Display Features
1, Can support real 10 points touch, Compatible with multiple system
2, High accuracy, good sensitivity, strong anti interference ability.
3, Controllor with USB interface type .
Capacitive Touchscreen Display Advantages
1.Gloves can be drawn directly and normally without jumping points.Support glove work of various types and thicknesses.
2.Active pen type is complete can cover 7-65 inch.Authoritative certifcation.Precision and linearity,supporting anti-palm mistouch.suspension positioning and pen tip pressure sensing function.
Development process:
1. Receive customer's technical files, including PCAP drawing, LCD specification.
2. Recommend standard products or customize products based on customer's requirements.
3. Offer engineering drawing for confirmation and fill in project kick-off form.
4. Make samples according to the confirmed drawing.
5. Debug the samples based on the information on kick-off form, keep the FW.
6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
Capacitive Touchscreen Display details
| Item | Specification |
| Part Number | AC-C1075-27.0 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 656.02*394.02mm |
| View Area | 598.6*337.14mm |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Capacitive Touchscreen Display Application
- industria equipement
- POS machine
- Self-service terminals
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
2. How about mass production lead time ?
------ 15 days after sample confirmed
3. shipping?
------,Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
